L-2
Sanway
NON
powered, passive
Overview

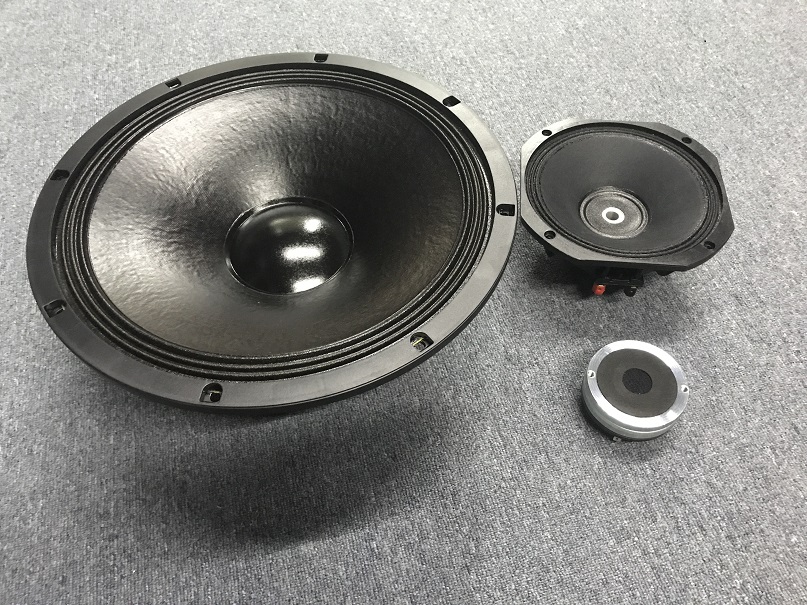

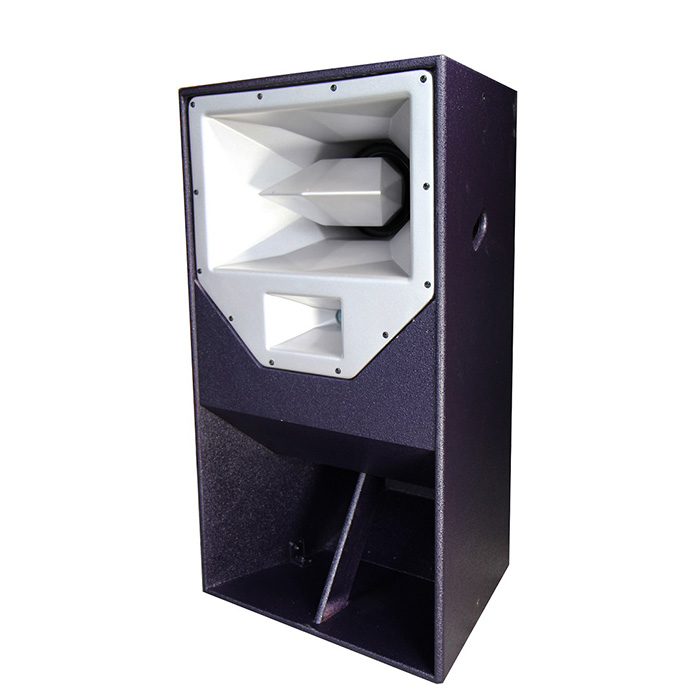

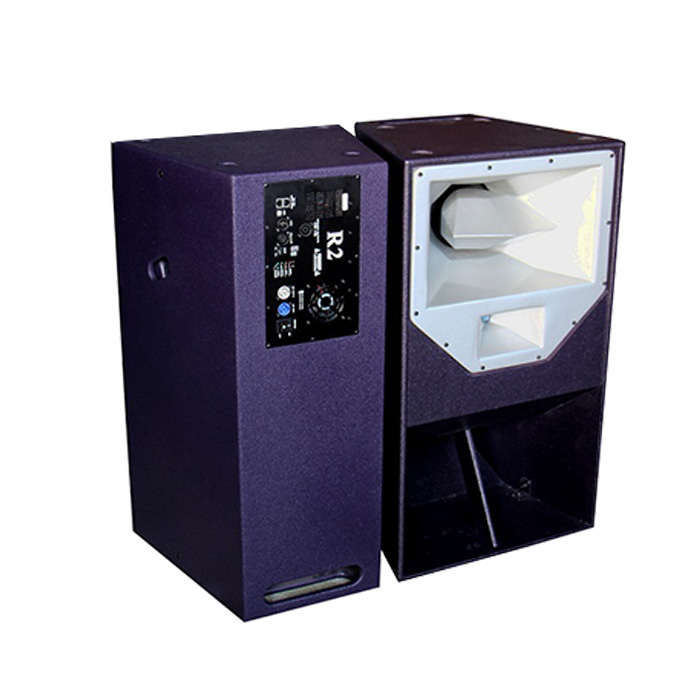

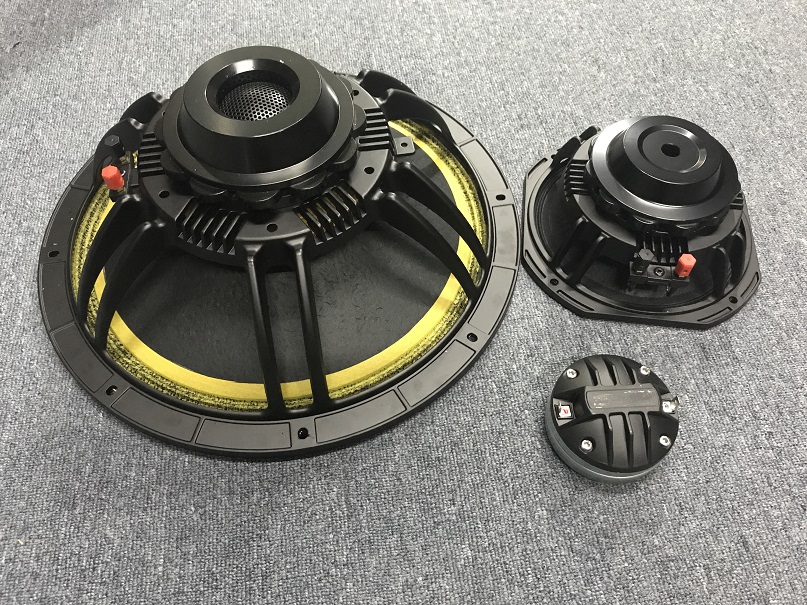

The L-2 is an entirely horn-loaded, surprisingly compact, full range loudspeaker enclosure. The driver complement comprises a 15” for bass, an 8” for midrange and a 1” for high frequencies. For the powered version, we mount one amplifier module inside with DSP function. The L-2’s unique combination of size, high efficiency and sonic excellence make it ideally suited to a wide range of uses. This loudspeaker resolves the requirement for quality, response and level from a small source.

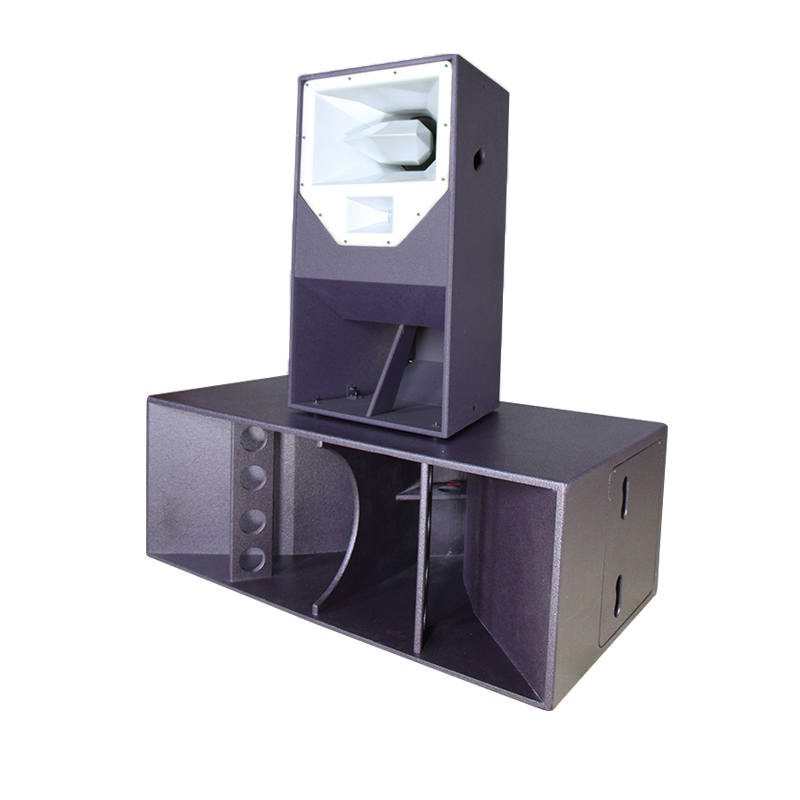

It usually coupled with the dual 18 inch F218MK2 subwoofer.
Features
1>. Full range, stand alone enclosure
2>. Fully horn loaded for high efficiency
3>. Three-way bi-amped (passive HF)
4>. Advance designed drivers
5>. Complete range of flying and mounting options
6>. Fitted with M10 flypoints
7>. Optional Wheelboard
8>. Optional scrim for discrete appearance
Application
The L-2 speaker is suitable for large,mid,and small stage in live performance.
-- KTV sound reinforcement
-- Bar and club live or pre-recorded sound reinforcement
-- High-performance satellite speaker for use with subwoofers
Specification
| Model | L-2 |
| Frequency Response( ±3dB) | 50Hz-18KHz |
| Sensitivity(1w/1m) | LF:102dB |
| MF:106dB | |
| HF:107dB | |
| Crossover Piont | 250Hz |
| Nominal Impedance | LF:8ohms |
| MF+HF:12ohms | |
| Power rated | LF:400 watts |
| MF:200 watts | |
| HF:50 watts | |
| Operating Band | LF: 28 - 250Hz |
| MF:250 - 6k5Hz | |
| LF:6k5Hz - up | |
| Nominal dispersion | 50 ° ×25 °V |

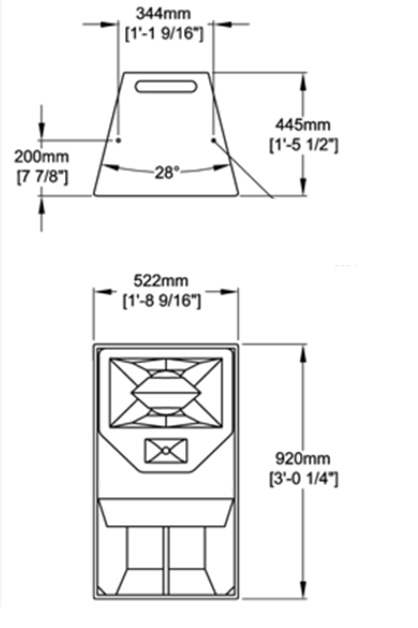

| Dimensions(H ×W ×D) | 920×522 ×445mm |
| Enclosure material | 18mm plywood |
| Surface finished | Silver or Violet color selectable |
| Net weight | 48kg passive/ 53kg powered |
| Low frequency driver | 1 ×15 inch |
| Mid frequency driver | 1 x 8 inch |
| High frequency driver | 1 ×1 inch |
| Input Connectors | 2 x Speakon NL4 |
Demo of R2 R1 and F218MK2:
